T2SL Oden MW
The T2SL Revolution
Introducing the T2SL Oden MW, our groundbreaking HOT detector loaded with SWaP technology. Oden serves next-generation compact electro-optical systems. The complete detector.
Description
Oden MW is highly sensitive with a full MWIR wavelength response. It boasts all the advantages of T2SL, including low Noise Equivalent Temperature Difference (NETD), excellent quantum efficiency and array uniformity and operability. Discover a detector with no MWIR cut-off and no compromises.
Performance
It took decades of T2SL innovation to produce the performance of a giant detector in a package this small. Rely on T2SL Oden MW when nothing else but an unrivaled small, light-weight and low power (SWaP) infrared detector will serve your purpose. Full performance up to 150 K.
It’s here! T2SL Oden MW. Decades of material innovation. Advanced quantum atomic layers. Thousands of CMOS transistors. All in one chip from Sweden.
.jpg)
Uncompromised image quality

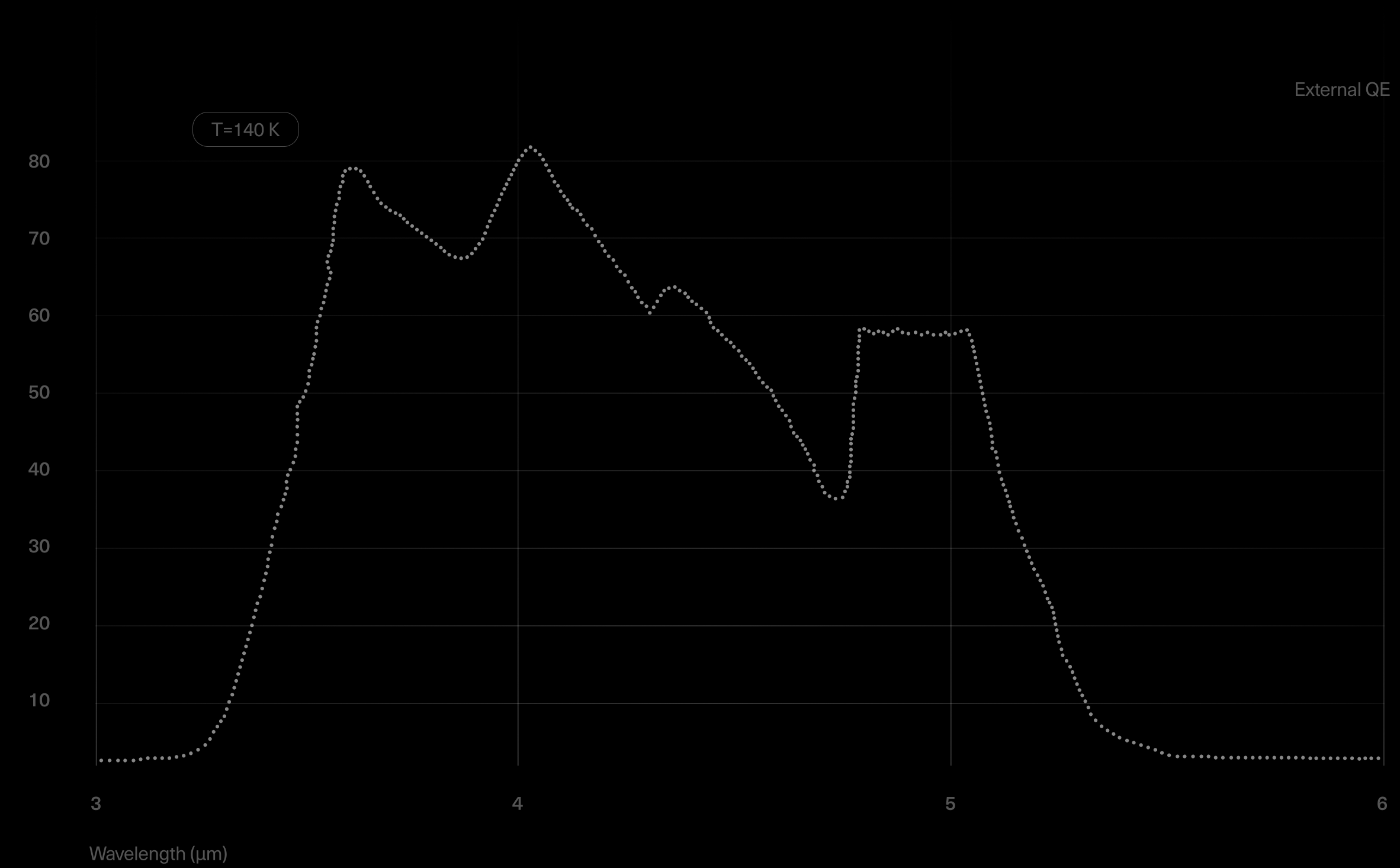

Capture every detail. 640x512 resolution. Selectable frame-rate. Full MWIR spectrum and high quantum efficiency provides maximum sensitivity. High operability, defined by the percentage of working pixels, makes for easy system integration. Rich and sharp image requires minimal use of enhancement.
Security & surveillance
T2SL Oden MW can help you in: UAV gimbals, compact multi sensor systems, handheld and battery powered systems, goggles, portable cameras and mobile and stationary platforms. Or virtually any application.
The T2SL Oden MW can do it all.
In the palm of your hand
Weighs just 230 g and equipped with a compact rotary cryocooler for low noise and power consumption. Your choice of an F/4 or an F/5.5 aperture, for small footprint, low-cost optics.
Quantum revolution
We built the T2SL Oden MW around our latest quantum mechanical structure, a revolutionary material used in the focal plane array (FPA). It absorbs incoming photons of the full MWIR spectrum at an extreme rate, but functions at higher temperatures than legacy technologies. Pinnacle performance at minimal power consumption.
Technology
T2SL
Spectral range
3.7 – 5.1 μm
Pitch 15 μm
Format
640x512
Steady state
Power 3.5 W
Standard
MIL-STD-810
Dimensions
50x50x96 mm
Weight 230 g
Description
The Oden MW is a HOT T2SL-based general purpose SWaP detector that operates at up to 150K. This higher focal-plane temperature allows for power consumption that is more than halved compared to regular detectors and an equally significant reduction in weight and volume in assembly.
Applications
Space constrained systems (UAV gimbals, compact multisensor systems)
Handheld and battery powered systems (goggles, portable cameras)
Mobile and stationary platforms
General information
Application:
General purpose
Format:
640x512
Technology:
T2SL
Pixel pitch:
15 μm
Typical detector performance
Spectral range:
3.7-5.1 μm
F number options:
F4, F/5.5
NETD:
20 mK
Pixel operability:
> 99.5 %
Frame rate:
60/120 Hz
Depending on proxy version
Proximity electronics
Supply voltage:
5 V
Maximum frame rate:
Selectable frame rate supported
Electrical interfaces:
Camera Link
Cooler control and proximity electronics included
IDDCA Parameters
Cooler options:
RMs1
SX020, K580 and K588 available
Power consumption:
3.5 W / < 10 W
Steady state / Cooldown
Cool down time:
3 min
Cooler voltage:
12 V
Weight and dimensions:
230 g
50x50x96 mm
Cooler MTTF:
> 10 000 h
Environmental conditions:
MIL-STD-810
Downloads
Product leaflet
T2SL
Oden MW
EvalKit
Building something new? Our evaluation kits have everything you need to try our detectors and design your camera system. They’re modular and include a power supply, frame-grabbing electronics, image acquisition software and optics.
Plug in and get going in minutes!
Technical characteristics described above are not contractual and may change without prior notice. This is revision 1.0.
